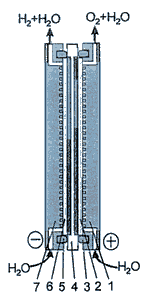

Figure 1 Cross sectional schematic of 2500cm2 cell
|
No |
Part |
Material |
1 |
Anode frame |
Titanium plate |
2 |
Anode support collector |
Platinum plated titanium fiber sintered plate |
3 |
Packing |
Viton |
4 |
Membrane-electrode assembly |
Perfluorocarbon sulfonic acid membrane and noble metal catalyst (IrO2, Pt black) |
5 |
Packing |
Viton |
6 |
Cathode support collector |
Gold plated stainless steel fiber sintered plate |
7 |
Cathode frame |
Titanium plate |
|

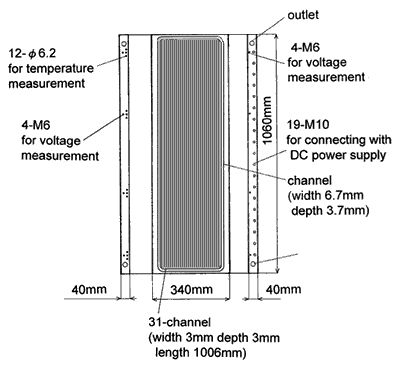

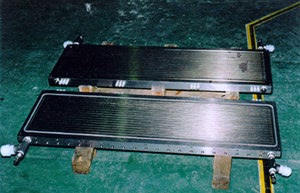

Figure 2 Frame for 2500cm2 cell

frame

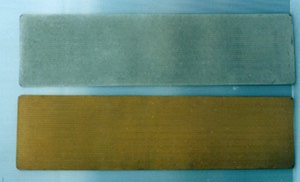

Figure 3 Support collector for 2500cm2 cell

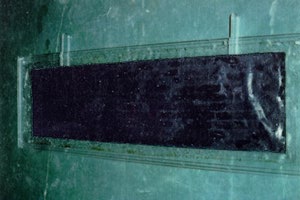

Figure 4 Membrane electrode assembly for 2500cm2 cell
