Fig.8-3-1 Main Causes of Hot Gas Ingestion

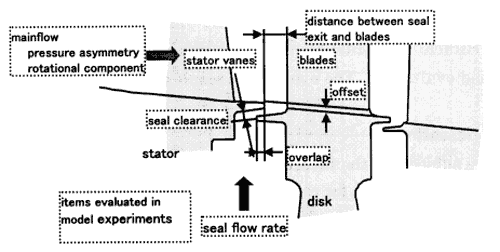

Fig.8-3-2 Parameters of Seal Configuration and Main Flow Asymmetry

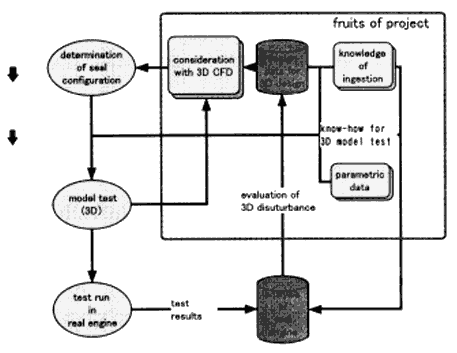

Fig.8-3-3 Schematic of Advanced 3D Design

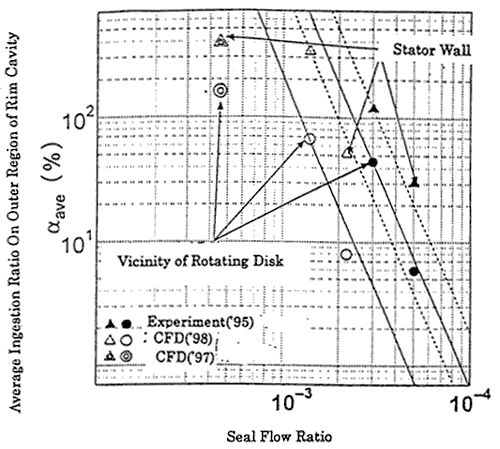

Fig. 8-3-4 Seal Flow Ratio and Average Ingestion Ratio
(Comparison of CFD results with experiment and CFD in '95)

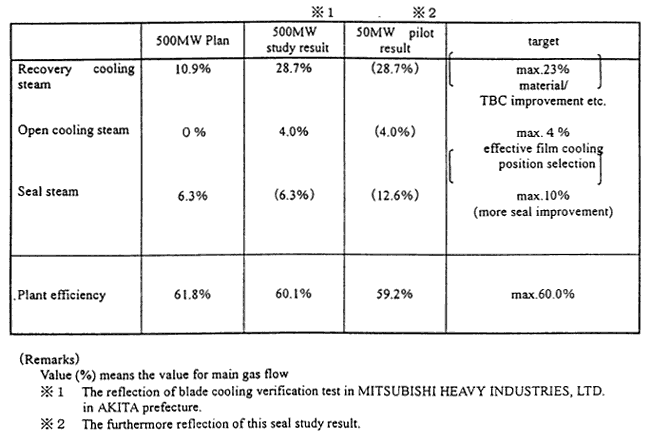

Table 8-3-3 Seal property Compression table
(50MW pilot plant)

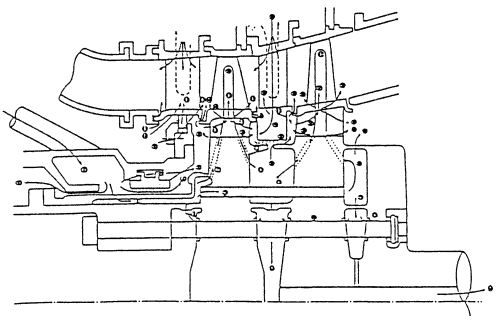

Fig. 8-3-5 Steam flow model of rotor cooling system
