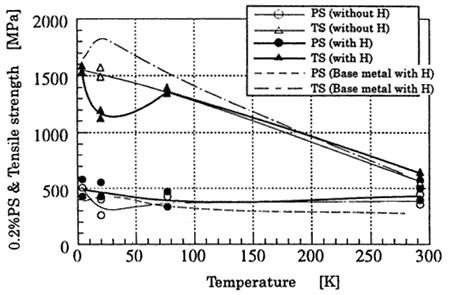

Fig. 6-2-1 Influences of Hydrogen Charge and Testing
Temperature on the Tensile Strength of 304L Weld Metals

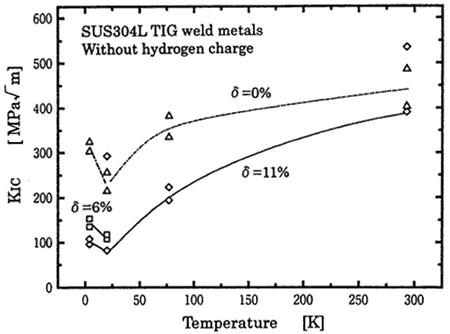

Fig. 6-2-2 Influences of Testing Temperature on the Fracture Toughness of
SUS304L TIG Weld Metals

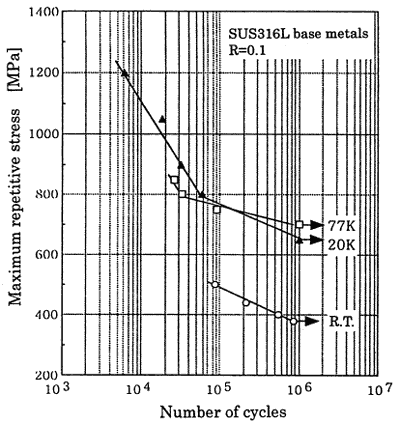

Fig. 6-2-3 Results of Fatigue Tests on SUS316L Base Metals

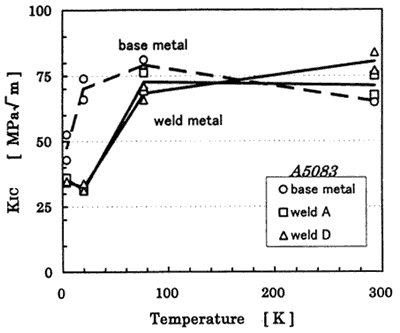

Fig. 6-2-4 Influences of Testing Temperature
on the Fracture Toughness Values o A5083

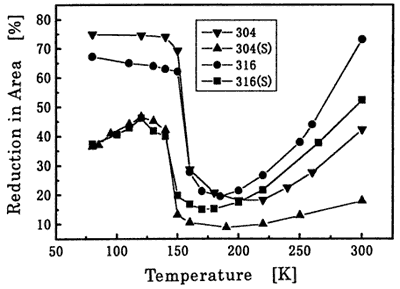

Fig. 6-2-5 Influences of Testing Temperature on the
Reduction of Austenitic Stainless Steel in a 1.1-Mpa
Hydrogen Environment (S: Sensitized material)
