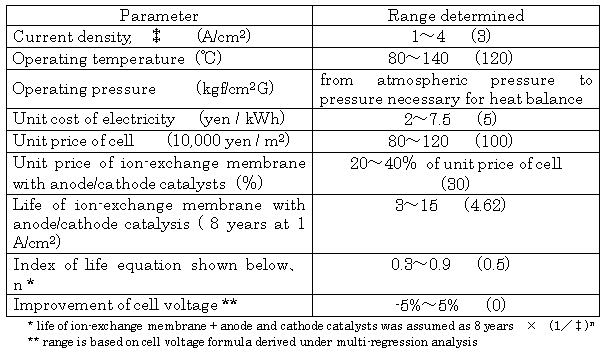

Table 4-2-4-1 Parameters and range determined

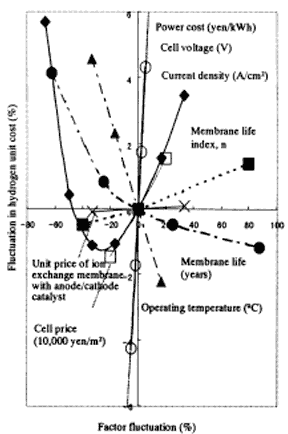

Fig. 4-2-4-1 Results of sensitivity analysis

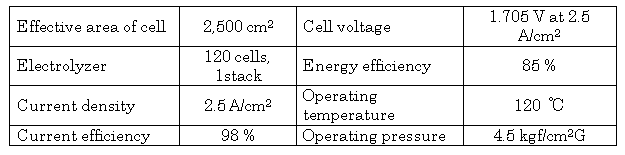

Table 4-2-4-2 Basic criteria for 300Nm3/h hydrogen production system

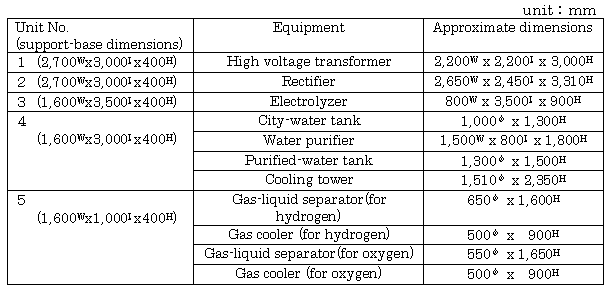

Table 4-2-4-3 Assembly unit for major equipment


Table 4-2-4-4 Operating conditions of electrolyzer at 200°C


Table 4-2-4-5 Operating conditions of electrolyzer at atmospheric pressure

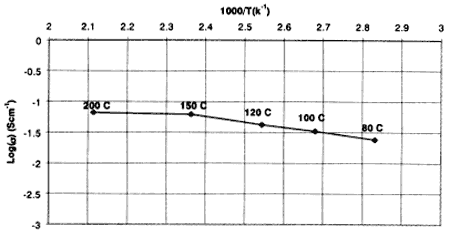

Fig. 4-2-5
