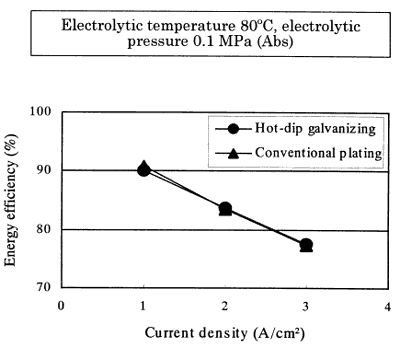

Fig. 4-2-2-1 Comparison of H2O electrolyte cell properties
by method of nonelectrolytic plating


Fig. 4-2-2-2 Parameters affecting stack design

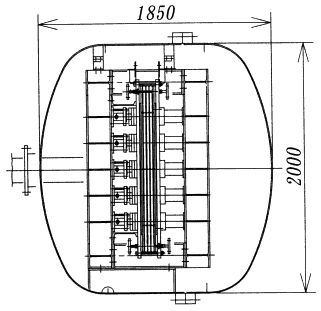

Fig. 4-2-2-3 2,500 cm2x 4-cell stack and support

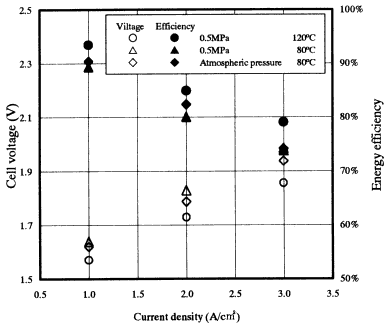

Fig. 4-2-2-4 Results of energy efficiency measurement
for the single-stage stack

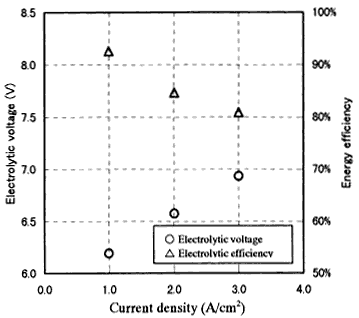

Fig. 4-2-2-5 Results of energy efficiency measurement for the
2,500 cm2x 4-stage stack
