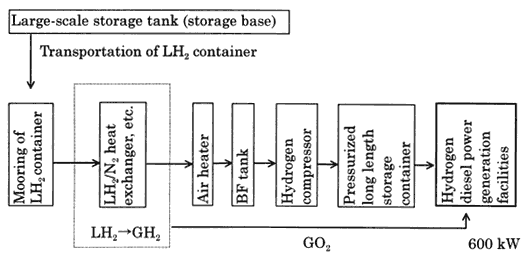

(1) Schematic flowchart of a system for generating power by supplying hydrogen to
hydrogen diesel facilities

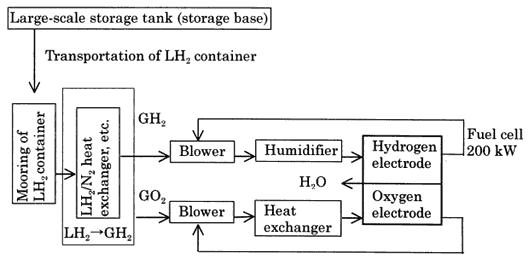

(2) Schematic flowchart of a system for generating power by supplying hydrogen to
fuel cell

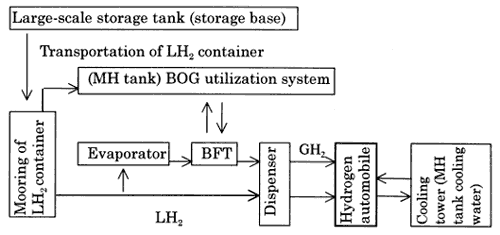

(3) Schematic flowchart of a system for supplying hydrogen to hydrogen automobile

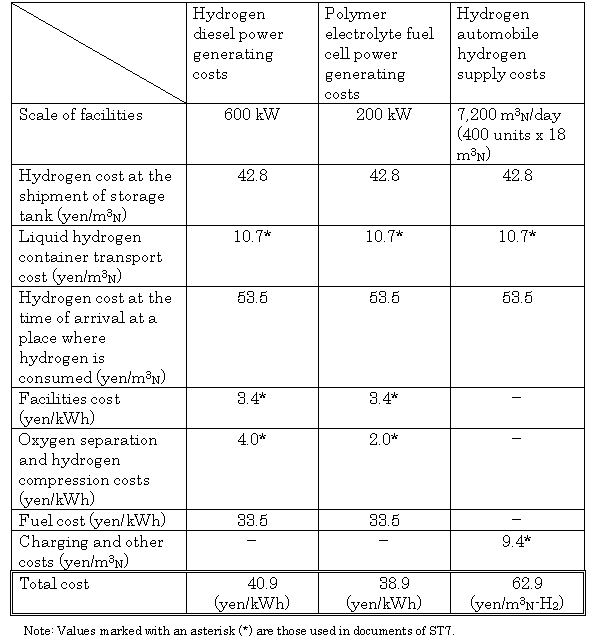

Rough estimate of the cost of generating power

(In the case of an average transportation distance of 200 km in a liquid hydrogen container)

Table 3-1-2-5
