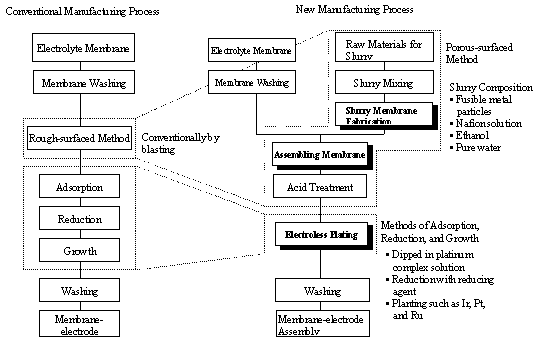

Fig. 4.2.1-1 Cell Manufacturing Process

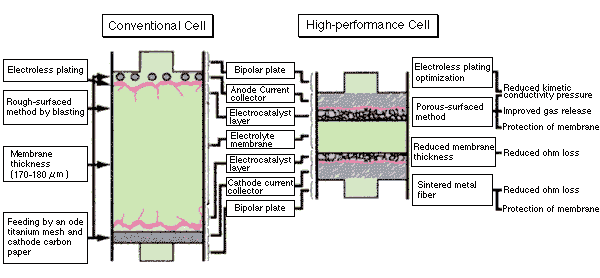

Fig. 4.2.1-2 Cell Structure Model

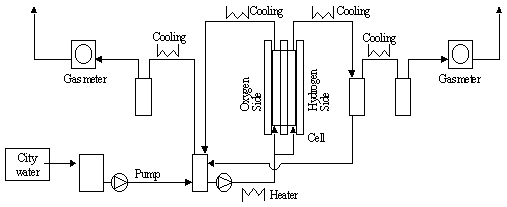

Fig. 4.2.1-3 Test device of 2500cm² Cell

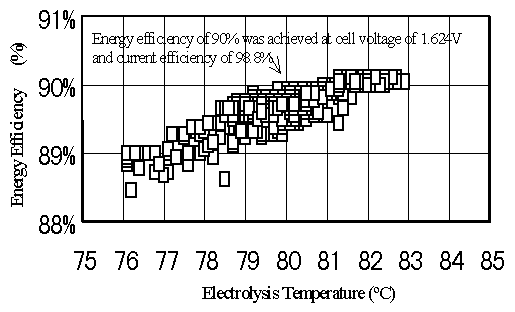

Fig. 4.2.1-4 Examination of Electrolysis Temperature Changes

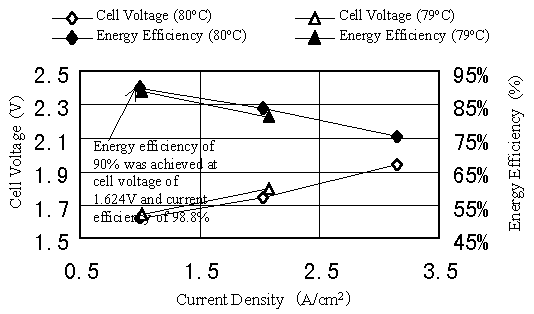

Fig. 4.2.1-5 Current Density- Cell Voltage Characteristics

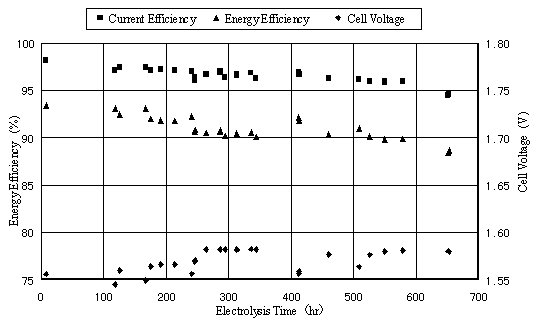

Fig. 4.2.1-6 Durability Test of Nafion 112

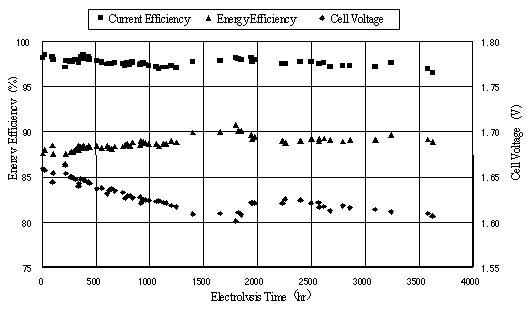

Fig. 4.2.1-7 Durability Test of Nafion 115

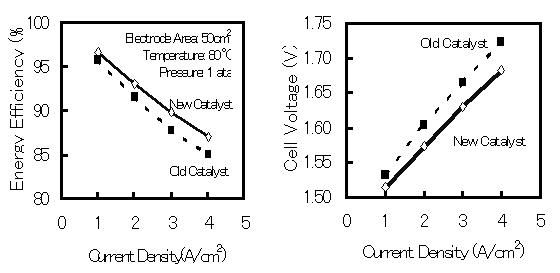

Figure 4.2.2-1 Electrolytic Performance of Anode Catalyst
